How to update your Reference Architecture to use the Gruntwork Service Catalog

This guide walks you through how to update v1.0 of the Gruntwork Reference Architecture, which uses a private infrastructure-modules repo, to v2.0, which uses the Gruntwork Service Catalog. The Gruntwork Service Catalog is a set of dozens of highly configurable, battle-tested, production-grade services that you can deploy off-the-shelf without writing any code. Many modules offered in the infrastructure-modules repository of the Gruntwork Reference Architecture are fully replaced with the Service Catalog, eliminating the need to maintain snapshots of the Services in your own repository.

note

Dedicated guide for updating Landing Zone and Gruntwork Pipelines haven't been written yet. Until then, please consult this guide on adopting the Landing Zone and the Gruntwork Pipelines deployment guide.

Core Concepts

On August 26th, 2020, we announced the initial release of the Service Catalog in a private, invite-only alpha program. Since then we have expanded the catalog to be generally available, with all Gruntwork subscribers getting access to the services of the catalog. A service includes everything you need in production, including the Terraform code for provisioning, Packer templates or Dockerfiles for configuration management, built-in monitoring (metrics, logging, alerting), built-in security features (SSH access, secrets management, server hardening, encryption in transit and at rest), and so on. This allows you to deploy infrastructure without writing any code.

Prior to the release of the Service Catalog, the Gruntwork Reference Architecture included a customized set of services in the form of a private infrastructure-modules repository for each customer. These services required continuous maintenance from the end users to keep up to date with each change, including updating module references when new versions were released.

Now with the Service Catalog, there is no longer a need to maintain a separate service module for every component you use. Instead, you can rely on the battle tested, Gruntwork maintained service module in the Service Catalog!

If you haven’t made any modifications to a service since receiving the Reference Architecture, we recommend updating your infrastructure-live configuration to use the service modules from the Service Catalog instead of using and maintaining your copy in infrastructure-modules. Using the Service Catalog directly has several advantages:

Keep up to date with module releases with a single version bump in your Terragrunt live configuration, as opposed to updating each module block reference.
Update to a new, backward incompatible Terraform version with a single version bump as well. No need to track backward incompatible syntactical changes in Terraform!
Rely on Gruntwork to provide feature updates and bug fixes to the services.

Though the Service Catalog fully replaces the services defined in your infrastructure-modules repository, there are some differences that require you to make modifications to Terragrunt configurations in your infrastructure-live repository before you can start using the Service Catalog.

Deployment Walkthrough

Your goal in this walkthrough is to replace references to infrastructure-modules with terraform-aws-service-catalog, within your infrastructure-live repo. You will follow a two-step process:

Prepare your Terragrunt infrastructure-live configuration to support the Service Catalog
Update each Terragrunt live configuration to use the Service Catalog

This guide assumes a minimum Terragrunt version of 0.28.18. If you are using an older Terragrunt version, be sure to update to at least this version first.

You can also watch a video walkthrough of a single module update.

Step 1: Prepare your Terragrunt configuration to support the Service Catalog

The Terraform modules in the Service Catalog are missing some required blocks for Terraform to operate (e.g., the provider and terraform state backend blocks). This is by design, to allow the modules to be flexibly used in different contexts (unlike the infrastructure-modules modules which are only intended to be used in the Terragrunt context). As such, you need to inject these required blocks to use advanced features of Terragrunt. Here we define a new root terragrunt.hcl configuration that includes these directives so that we can continue to use the original, non-Service Catalog based live configuration.

For reference, you can download the refarch-folder-structure zip file which contains all the following files in their respective locations in the folder structure. You can copy these files into your own infrastructure-live repository.

Create a new file terragrunt_service_catalog.hcl at the root of the infrastructure-live repository. We name this differently from the existing terragrunt.hcl so that the modules that haven’t migrated yet won’t be affected.

Insert the following contents:

# ---------------------------------------------------------------------------------------------------------------------
# TERRAGRUNT CONFIGURATION
# ---------------------------------------------------------------------------------------------------------------------

locals {
  common_vars  = read_terragrunt_config(find_in_parent_folders("common.hcl"))
  account_vars = read_terragrunt_config(find_in_parent_folders("account.hcl"))

  # Optional: Update to use HCL instead of YAML
  region_vars  = yamldecode(file(find_in_parent_folders("region.yaml")))

  name_prefix    = local.common_vars.locals.name_prefix
  account_name   = local.account_vars.locals.account_name
  account_id     = local.account_vars.locals.account_id
  default_region = local.common_vars.locals.default_region
  aws_region     = local.region_vars["aws_region"]
}

# ----------------------------------------------------------------------------------------------------------------
# GENERATED PROVIDER BLOCK
# ----------------------------------------------------------------------------------------------------------------

generate "provider" {
    path      = "provider.tf"
    if_exists = "overwrite_terragrunt"
    contents  = <<EOF
provider "aws" {
    region = "${local.aws_region}"
    version = ">= 3.13.0"
    # Only these AWS Account IDs may be operated on by this template
    allowed_account_ids = ["${local.account_id}"]
}
EOF
}

# ----------------------------------------------------------------------------------------------------------------
# GENERATED REMOTE STATE BLOCK
# ----------------------------------------------------------------------------------------------------------------

# Configure Terragrunt to automatically store tfstate files in an S3 bucket
remote_state {
    backend = "s3"
    config = {
    encrypt        = true
    bucket         = "${local.name_prefix}-${local.account_name}-terraform-state"
    region         = local.default_region
    dynamodb_table = "terraform-locks"
    # To ensure that the state paths are the same as before, we drop the account folder (the first path element)
    # which is now included in the relative path.
    key            = trimprefix("${path_relative_to_include()}/terraform.tfstate", "${local.account_name}/")
    }
    generate = {
    path      = "backend.tf"
    if_exists = "overwrite_terragrunt"
    }
}

# ---------------------------------------------------------------------------------------------------------------------
# GLOBAL PARAMETERS
# These variables apply to all configurations in this subfolder. These are automatically merged into the child
# `terragrunt.hcl` config via the include block.
# ---------------------------------------------------------------------------------------------------------------------

inputs = {
    # Many modules require these two inputs, so we set them globally here to keep all the child terragrunt.hcl files more
    # DRY
    aws_account_id = local.account_id
    aws_region     = local.aws_region
}

Explanation

In the non-Service Catalog flavor of the Reference Architecture, we had a root configuration for each account to ensure that we can create a different state bucket for each account. While this isn’t necessary for the Service Catalog, we switch to a single root terragrunt.hcl config here (which is possible due to the advanced functions that are available in newer Terragrunt versions) because there are more common blocks that are necessary, and we want to keep these blocks DRY.

To support the new requirements of the Service Catalog, we also introduce two code generation configuration:

generate "provider": Uses the terragrunt code generation feature to inject the provider block into the module prior to invoking terraform.
generate attribute of the remote_state block: Similar to the provider block generation, this attribute injects the terraform.backend configuration.

Finally, we introduce a locals block to define references that can be reused throughout the configuration. Note that for new commonly used variables, we use read_terragrunt_config instead of yamldecode(file()) to allow for use of terragrunt functions in the config.

Note that the suggested config continues to use the region.yaml data file to simplify the migration process. You can optionally update this file to hcl for consistency.

Create new data files for the root config (these are the files that are read in in the locals blocks):
- In the root of the infrastructure-live repository, add a common.hcl file with the following contents:
```
locals {
  # TODO: A unique name prefix to set for all infrastructure resources created in your accounts.
  name_prefix = ""
  # TODO: the default AWS region to use. This should be the same as where the terraform state S3 bucket is
  # currently provisioned.
  default_region = ""
}
```
- In each account folder (e.g., infrastructure-live/dev or infrastructure-live/shared), add a file named account.hcl with the following contents:
```
locals {
  # TODO: Update with the actual information for each account
  # The user friendly name of the AWS account. Usually matches the folder name.
  account_name = ""
  # The 12 digit ID number for your AWS account.
  account_id = ""
}
```
- (optional) If you wish to replace your yaml variable files with HCL, in each region folder (e.g., infrastructure-live/dev/us-east-2), add a file named region.hcl with the following contents:
```
locals {
  # TODO: enter the region to use for all resources in this subfolder.
  aws_region = ""
}
```
Note that you will want to have a region.hcl file for the _global folder as well. In this case, set the aws_region to us-east-1.

Create migration helper scripts (these are used by the Gruntwork Service Catalog Terraform state migration bash scripts):

Create a new directory _scripts at the root of the infrastructure-live repository.

Create a new file migration_helpers.sh in the newly created _scripts folder and paste in the following contents:

#!/usr/bin/env bash
# Helper functions for implementing state migrations for updating terraform modules to newer versions.

function log {
  >&2 echo -e "$@"
}

# find_state_address uses the provided query string to identify the full resource address to use in the state file.
function find_state_address {
  local -r query="$1"

  log "Identifying real state address of $query"
  terragrunt state list \
    | grep -E "$query" || true
}

# strip_bash_color will strip out bash color/bold escape sequences.
function strip_bash_color {
  local -r input="$1"
  # Based on this stack overflow post: https://stackoverflow.com/questions/6534556/how-to-remove-and-all-of-the-escape-sequences-in-a-file-using-linux-shell-sc.
  # None of the sed calls worked to completely strip of the escape sequences by itself, but the following combination worked.
  echo "$input" | cat -v | sed 's/\^\[\[[10]m//g'
}

# Check that the given binary is available on the PATH. If it's not, exit with an error.
function assert_is_installed {
  local -r name="$1"
  local -r help_url="$2"

  if ! command -v "$name" > /dev/null; then
    log "ERROR: The command '$name' is required by this script but is not installed or in the system's PATH. Visit $help_url for instructions on how to install."
    exit 1
  fi
}

# Make sure that the hcledit utility is installed and available on the system.
function assert_hcledit_is_installed {
  assert_is_installed 'hcledit' 'https://github.com/minamijoyo/hcledit#install'
}

# Make sure that the jq utility is installed and available on the system.
function assert_jq_is_installed {
  assert_is_installed 'jq' 'https://stedolan.github.io/jq/download/'
}

# Move resources in a literal terraform state move. Unlike a simple terragrunt state mv call, this does error checking
# to make sure the given state actually exists.
function move_state {
  local -r original_addr="$1"
  local -r new_addr="$2"

  if [[ "$original_addr" == "$new_addr" ]]; then
    echo "Nothing to change. Skipping state migration."
    return
  fi

  if ! terragrunt state show "$original_addr" >/dev/null 2>&1; then
    echo "Original address $original_addr not found in state file. Nothing to change. Skipping state migration."
    return
  fi

  echo "Migrating state:"
  echo
  echo "    $original_addr =>"
  echo "      $new_addr"
  echo
  terragrunt state mv "$original_addr" "$new_addr"
}

# Move resources in terraform state using fuzzy matches.
function fuzzy_move_state {
  local -r original_addr_query="$1"
  local -r new_addr="$2"
  local -r friendly_name="$3"

  log "Checking if $friendly_name needs to be migrated"

  local original_addr
  original_addr="$(find_state_address "$original_addr_query")"

  if [[ -z "$original_addr" ]] || [[ "$original_addr" == "$new_addr" ]]; then
    echo "Nothing to change. Skipping state migration."
  else
    echo "Migrating state:"
    echo
    echo "    $original_addr =>"
    echo "      $new_addr"
    echo
    terragrunt state mv "$original_addr" "$new_addr"
  fi
}

# The following routine extracts a resource attribute.
function extract_attribute {
  local -r address="$1"
  local -r resource_basename="$2"
  local -r attribute="$3"

  local state
  state="$(terragrunt state show "$address")"
  local state_nocolor
  state_nocolor="$(strip_bash_color "$state")"

  echo "$state_nocolor" \
    | hcledit attribute get "$resource_basename"."$attribute" \
    | jq -r '.'
}

# Move resources in terraform state using an import call instead of state mv. This is useful when moving resources
# across aliased resources (e.g., aws_alb => aws_lb).
function fuzzy_import_move_state {
  local -r original_addr_query="$1"
  local -r new_addr="$2"
  local -r resource_basename="$3"
  local -r friendly_name="$4"

  log "Checking if $friendly_name needs to be migrated."
  local original_addr
  original_addr="$(find_state_address "$original_addr_query")"
  if [[ -z "$original_addr" ]]; then
    log "$friendly_name is already migrated. Skipping import."
    return
  fi

  log "$friendly_name needs to be migrated"

  log "Identifying $friendly_name ID to import into new resource."
  local resource_id
  resource_id="$(extract_attribute $original_addr $resource_basename "id")"

  if [[ -z "$resource_id" ]]; then
    log "ERROR: could not identify $friendly_name ID to import."
    exit 1
  fi

  log "Importing $friendly_name to new resource:"
  log
  log "    ID:           $resource_id"
  log "    ResourceAddr: $new_addr"
  terragrunt import "$new_addr" "$resource_id"

  log "Removing old $friendly_name state."
  terragrunt state rm "$original_addr"
}

# This function migrates the original list into a new map at the original address.
# First it moves each item in the list into a new map.
# Then it moves the new map back to the original address.
# The keys of the new map correspond to the value of the attribute that is passed into `attribute`.
# We look up this value in the function.
function move_state_list_to_map {
  local -r original_addr="$1"
  local -r attribute="$2"

  # Move the list to a temporary map
  local map_addr
  map_addr="$1_tmp"

  # Pull the full list of addresses in the original_addr (aws_ecr_repository.repos[0], aws_ecr_repository.repos[1], etc)
  local list_addresses
  list_addresses="$(find_state_address "$original_addr")"
  for addr in $list_addresses
  do
    # Extract the attribute that will be the new key in the map.
    local key
    key="$(extract_attribute "$addr" "resource.$original_addr" "$attribute")"
    echo "Migrating state:"
    echo
    echo "    $addr =>"
    echo "      $map_addr[$key]"
    echo
    # Move the resource to the new temporary map address.
    terragrunt state mv "$addr" "$map_addr[\"$key\"]"
  done

  # Move the temporary map back to the original address, now as a map
  terragrunt state mv "$map_addr" "$original_addr"
}

# This function migrates a list to a new list with a different name.
function fuzzy_move_list {
  local -r original_list="$1"
  local -r new_list="$2"
  local -r friendly_name="$3"

  log "Checking if $friendly_name needs to be migrated"

  if [[ -z "$original_list" ]] || [[ "$original_list" == "$new_list" ]]; then
    echo "Nothing to change. Skipping state migration."
  else
    local original_addrs
    original_addrs="$(find_state_address "$original_list")"
    for addr in $original_addrs
    do
      local new_addr
      new_addr="$(
        echo "$addr" \
          | sed "s/$original_list/$new_list/"
      )"
      echo "Migrating state:"
      echo
      echo "    $addr =>"
      echo "      $new_addr"
      echo
      terragrunt state mv "$addr" "$new_addr"
    done
  fi
}

Step 2: Update each Terragrunt live configuration to use the Service Catalog

At this point, you are ready to update each live configuration! It’s important to take a bottom-up approach for migrating the live configurations. That is, update live configurations that don’t have any downstream dependencies first, then work your way up the dependency graph.

This ensures that:

Each update is self contained. Changing the live configuration of leaf services will not affect other live configurations, allowing you to continue to make changes to un-migrated live configurations.
The migration is low risk. The leaf nodes in the Terragrunt infrastructure graph tend to be lower risk services. That is, the closer you are to the root of the graph, the higher the number of things that depend on that infrastructure, which gives that service a larger surface area. E.g., VPC has many downstream dependencies, which means that messing it up can cause lots of other services to fail.

However, this does mean that you will need to update previously migrated services if the upstream services has a change. For example, Service Catalog services sometimes have output name changes, which means that you will need to update the references in the downstream services when you update the service.

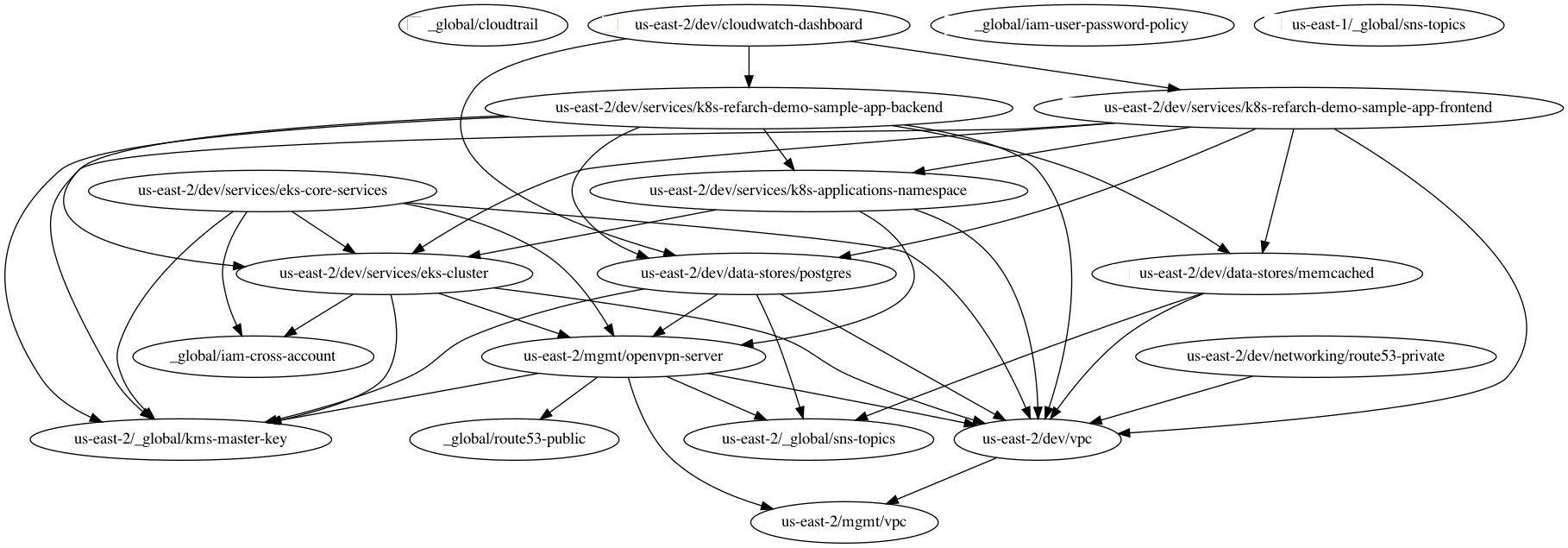

To handle this, you can identify all the downstream services that are affected by running terragrunt validate-all to identify these broken links each time a service is updated, and fix them in the same PR.

Don’t worry — we’re going to walk you through every step right now. At a high-level, here’s what you’ll do:

Choose a service.
Refer to the dedicated guide for that service.
Backup the state file.
Modify the terragrunt.hcl live configuration for it, following the guide.
Validate the backend configuration with terragrunt state list.
Validate the inputs with terragrunt validate-inputs.
Run the state migration script, if any.
Sanity check the changes with terragrunt plan.
Roll out with terragrunt apply.

Some of the services, such as EKS and ASG, have slightly different steps to the above list, so please pay attention to that.

Now for the full-fledged instructions to upgrade a single service:

Check the service’s downstream dependencies. Use the graph-dependencies command to create a visual representation. The arrow points from the leaf to the root, toward the dependency. Thus in the graph, the top nodes are leaf nodes and the bottom, root nodes.
- terragrunt graph-dependencies | dot -Tpng > graph.png
- If you get an error that dot is not available, install graphviz, which installs the dot utility.
  Here is an example of a dependency tree for the `dev` account using Reference Architecture v1.
Ensure the module is updated to the same version used in Reference Architecture version 20201125.
- If you’re running a newer version, continue.
- If you are running an older version, follow the migration guides referenced in the Reference Architecture releases to update to the latest version. This is important because the Service Catalog module references use newer versions from the Module Catalog than what is shipped with v1.0 of the Reference Architecture. Once you’ve upgraded to 20201125, you can automate any state manipulations that are required to update a service using the provided guides and scripts.
Make a backup of the state file using the following command: terragrunt state pull > backup.tfstate You can use this to rollback the state to before you attempted the migration with the following command: terragrunt state push "$(pwd)/backup.tfstate".
- NOTE: Make sure to use the Terraform version that is required for your module, as specified in the required_version configuration of the module.
Modify the terragrunt.hcl file to be compatible with the Service Catalog:
- Change the include path to find_in_parent_folders("terragrunt_service_catalog.hcl"). This ensures that you use the Service Catalog compatible root config you created in the previous step.
- Change the terraform.source attribute to point to the corresponding Terraform module in the terraform-aws-service-catalog repo. When updating the source, make sure to set the ref to target v0.35.5, unless otherwise noted down below in Appendix: Dedicated service migration guides.
Explanation
This migration guide targets v0.35.5 of the Service Catalog, unless otherwise noted down below in Appendix: Dedicated service migration guides. Newer versions may require additional state migrations that are not covered by the automated scripts. If you wish to update further, first update to v0.35.5 and then read the migration guides in the release notes of the Service Catalog to bump beyond that version.
- Find the dedicated service migration guide for the service.
- Using that guide, update the inputs to adapt to the Service Catalog Terraform module.
- You can use terragrunt validate-inputs as a sanity check.
- Remove the dependencies block, if any.
- Use dependency blocks. Use the dedicated service migration guide as a reference for what dependency blocks are needed.
- Add new required inputs, using dependency references as needed.
- Remove or rename unused variables.
- Ensure you include inputs for backward compatibility mentioned in the dedicated guide!
Run terragrunt state list to sanity check the state backend configuration. Watch for the following:
- You should NOT get any prompts from Terragrunt to create a new S3 state bucket. If you get the prompt, this means that either you are authenticating to the wrong account, or that the bucket name was misconfigured in the root terragrunt_service_catalog.hcl file.
- You should see resources listed in the state. If the command returns nothing, that means you are not properly linked to the old state file. Double check the key attribute of the remote_state block in the root terragrunt_service_catalog.hcl config.
Once you verify the state backend configuration is valid, perform the state migration operations:
1. Run the provided migration script for the service. Not all services have a migration script. Refer to the dedicated service migration guide for the script to run.
2. Sanity check the migration operation by running terragrunt plan. If the guide states that the upgrade is fully backward compatible, then you should only see backward compatible changes (only ~ or + operations, not - operations). Otherwise, expect some destroys.
  - NOTE: If you run into any errors related to code verification during provider plugin initialization, you will need to update to the latest terraform patch version that contains the latest terraform GPG key to sign the providers. When updating the terraform version, you also need to run terragrunt init to reinitialize the providers. The following lists the minimum patch version that includes the latest GPG key:
Once you’re satisfied with the plan, roll out the changes using terragrunt apply.
If the service has downstream dependencies, run terragrunt validate-all from the ACCOUNT directory to identify any outputs that have changed. Fix the output references on the dependency block for each error.

Appendix: Dedicated service migration guides

These dedicated guides are meant to be used in tandem with the main detailed guide above. They are stored in the infrastructure-live-multi-account-acme repository, which is now archived because it was used to share examples of Reference Architecture 1.0. You can still interact with the archived repo, and use it to help you upgrade your existing Reference Architecture.

Exceptions to Service Catalog Versions

The following modules require a different version of the Service Catalog than v0.35.5 to migrate properly:

route53-public: v0.32.0

How to update your Reference Architecture to use the Gruntwork Service Catalog

Core Concepts​

Deployment Walkthrough​

Step 1: Prepare your Terragrunt configuration to support the Service Catalog​

Explanation​

Step 2: Update each Terragrunt live configuration to use the Service Catalog​

Appendix: Dedicated service migration guides​
